Classification - Radio-interlinked photoelectric security detector
Type of detector - Wireless
Motion detection distance - Adjustable (from 6 to 15 meters)
Installation method - Indoors only
Compatibility - Operates with all Ajax hubs, and range extenders
Sensing element - Two PIR sensors
False alarm reduction - Available, Correlation Signal Processing
Alarm signal delivery time - 0.15 seconds
Detection angles - Horizontally — 6°/ Vertically — 90°
Time for motion detection - From 0.3 to 2 m/s
Sensitivity - Adjustable, 3 levels
Recommended installation height - 2.4 meters
Power supply - Battery: CR123A, 3 V
Battery life - Up to 3 years
Jeweller radio technology
Communication range with detectors — up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies — 868.0-868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s
Frequency hopping
Temperature sensor - Available
Operating temperature range - From −10°С to +40°С
Operating humidity - Up to 95%
Anti-sabotage
Fraud protection
Jamming notification
Tamper-resistant
Remote configuration and testing
Protection class - IP54
Dimensions - 134 × 44 × 34 mm
Weight - 118 g
Warranty - Replacement and repair for a period of 24 months from the date of sale. The warranty does not cover batteries
Complete Set

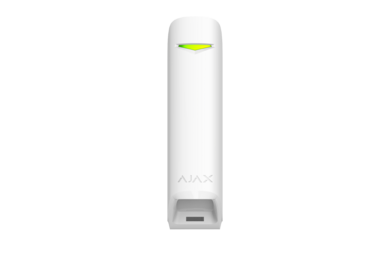

MotionProtect Curtain motion detector
SmartBracket mounting panel
CR123A batteries (pre-installed)
Bracket
Installation kit
User’s guide
Service life - 10 years
