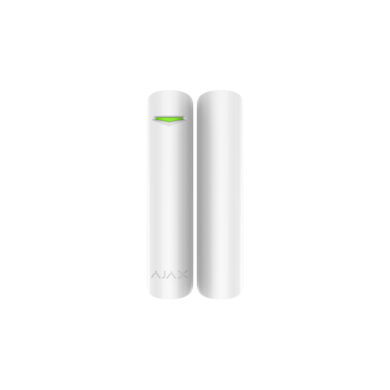

Classification - Combined point magnetic contact and vibration radio channel security detector
Type of detector - Wireless
Installation method - Indoors
Compatibility
Operates with all Ajax hubs, and range extenders
Sensing element
Reed switch, accelerometer
Alarm signal delivery time - 0.15 s
Activation threshold
Small magnet — 1 cm
Big magnet — 2 cm
Tilt: more than 5°
Power supply
Battery: CR123A battery, 3 V
Battery life - Up to 5 years
Jeweller radio technology
Communication range with central unit — up to 1,200 m in an open space
Two-way communication between devices
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector polling period — 12−300 s
Temperature sensor - Available
Operating temperature range - From -10°С to +40°С
Permissible humidity - Up to 75%
Anti-sabotage
Protection against fraud
Jamming detection
Tamper-resistant
Remote setting and testing - Available
Dimensions
Diameter - 20 mm
Height - 90 mm
Weight - 29 g
